Monel Alloy composition and price per kg

Monel metal grades at a glance with ASTM standard specification and equivalent chart

Monelis a common name for a group of nickel alloys that contain nickel the most with copper and other elements. The alloy is called cupronickel when the copper content exceeds nickel content. Usually, Monel contains from 52 to 67% of nickel. Monel properties and the composition make it stronger than pure nickel material. The formation could be by hot rolling or cold drawing. The cold drawn products precise in their dimensions and the hot rolled ones are much stronger. The alloy is very resistant especially to rapid flow of sea water. This property makes it best suited for sea water and marine applications. It is easy to be welded, machined and cold worked upon this material. The Monel price per kg differs from grade to grade and from product to product. You can contact us for a price list. There are differentMonel metal gradesavailable in the market. Each has a different composition and therefore specific mechanical properties and purposes. The grades are designated with letters and numbers. There areMonel 400, 401, 404, 405, 450, K-500, R-405 and Monel 502 grades available in the market. TheMonel alloy chemical compositiondiffers from grade to grade. TheMonel 400has high strength and excellent corrosion resistance. It is used in hydrocarbon processing, marine applications and in heat exchangers. The Monel 401 is used especially in electric and electronic applications. It has compatible brazing properties. The Monel 404 has low permeability and therefore it is used in electrical and electronic applications as well. The surface finish of alloy 405 is not very smooth because of the increased dose of sulfur in it, but it is very strong and is used in automatic screw machines. The Monel alloy applications differ with the grades of the alloy. Some special applications use the R-405 which is particularly resistant to hydrofluoric and hydrochloric acids.

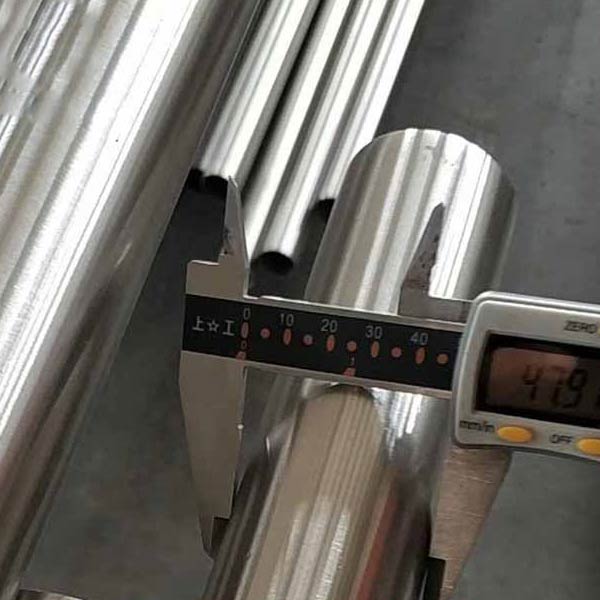

Monel Products

Monel Grades

Monel Alloy price per kg

Monel Price US $ 30/Kg

Different types of Monel

There are different types of Monel Metal which includesAlloy 400, Alloy 401,Alloy R-405, Alloy 450,Alloy K-500, Monel 404 Copper-Nickel Alloy.

Monel Alloy ASTM Standard

Alloy grade UNS designation ASTM standard
Monel 400 N04400 B 127, B 164 / SB 127, SB 164
Monel 401 N04401
Monel 404 N04404 B 164/ SB 164
Monel K-500 N05500 B 865/ SB 865
Monel R-405 N04405

Monel material specification

STANDARD WERKSTOFF NR. equivalents UNS GOST JIS BS AFNOR EN
Alloy 400 2.4360 N04400 МНЖМц 28-2,5-1,5 4400年西北 NA 13 NU-30M NiCu30Fe
Alloy K500 2.4375 N05500 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Monel Temperature Range

Monel temperature limit:up to 480 Deg C (896°F)

Melting Point:1300-1350 Deg C (2372-2462°F)

Monel Alloy Applications & Uses

  • Power generation

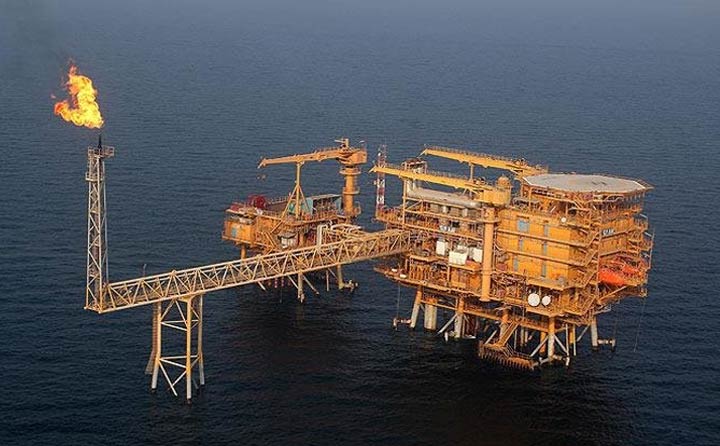

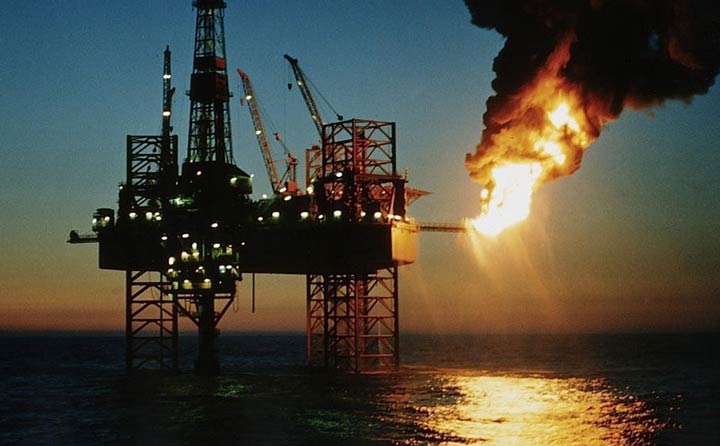

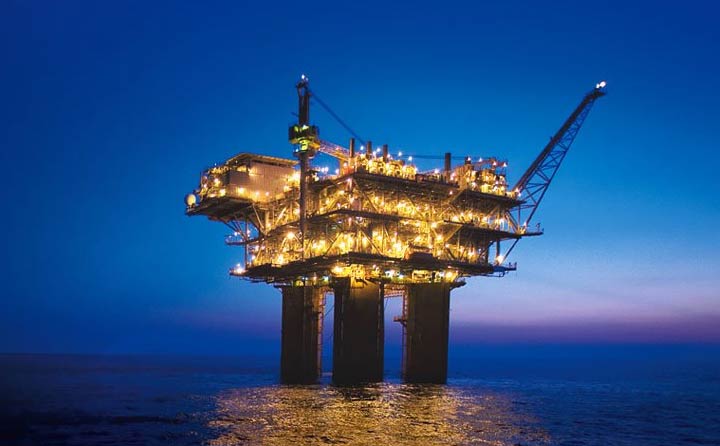

  • Sea-water applications
  • Commercial Gas Turbines
  • Food Processing
  • 化学处理
  • Cryogenic Storage / Pressure vessels Tanks
  • Nuclear reactors

Monel Chemical Compatibility Chart

Designation Ni% C% Ti% Ai% Co% Cr% V% W% Mo% Cu% Nb/Cb Ta% Fe% Sonstige Autres-Other %
Alloy 400 65.0 0.12 - - - - - - - 32.0 - 1.5 Mn 1.0
Alloy 401 43.0 0.10 - - - - - - - 53.0 - 0.75 Si 0.25; Mn 2.25
Alloy 404 52.0-57.0 0.15 - 0.05 - - - rest/bal - 0.50 Mn 0.10; Si 0.10;S o.024
Alloy 502 63.0-17.0 0.10 0.50 2.5-3.5 - - - - - rest/bal - 2.0 Mn 1.5;Si 0.5; S 0.010
Alloy K 500 64.0 0.13 0.6 2.8 - - - - - 30.0 - 1.0 Mn 0.8
Alloy R 405 66.0 0.15 - - - - - - - 31.0 - 1.2 Mn 1.0; S 0.04

Properties of Monel Alloy

Characteristics of Monel

  • 圣ronger than steel
  • Highly resistant to corrosion.
  • Malleable
  • Low coefficient of thermal expansion
  • Highly resistant to alkalis
  • Suitable for welded, brazed and soldere
Mechanical Analysis
Tensile strength, Ultimate 550 Mpa
Tensile strength, Yield 240 Mpa
Elongation at Break 48%
ELECTRICAL PROPERTIES
Electrical Resistance 5.47e-005 ohm-cm
Curie Temperature (the temperature above which a ferromagnetic substance loses its ferromagnetism) 35°C
THERMAL PROPERTIES
CTE, linear 20°C 13.9 µm/m- Deg C
Heat Capacity 0.427 J/g-Deg C
Thermal Conductivity 21.8 W/m-K
Melting Point 1300 - 1350 Deg C
Solidus 1300 Deg C
Liquidus 1350 Deg C
